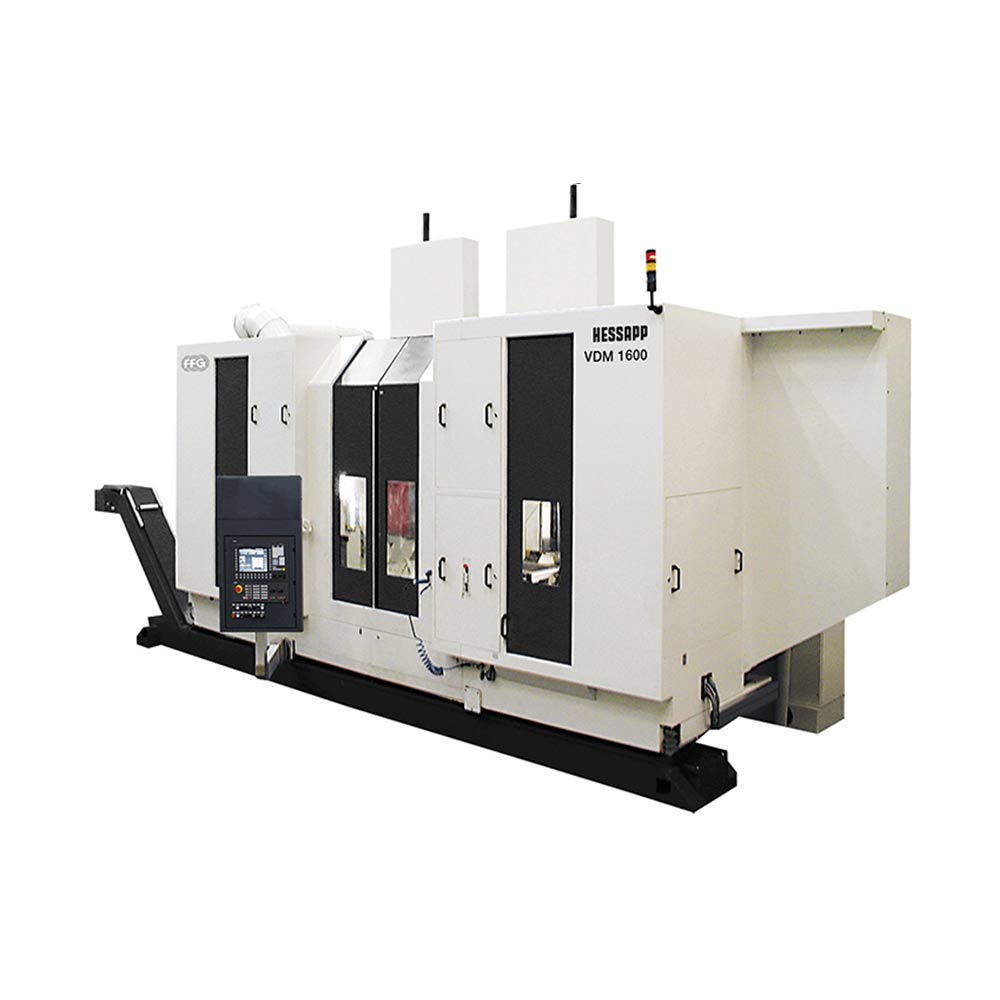

VDM-1600
| Feature | Value |
| Max. Turning Diameter (mm) | 1600 |
| Max. Dial Diameter (mm) | 1800 |
| Part Height Including Mirror (mm) | 900 |
| Spindle Front Bearing Diameter (mm) | 800 |
| Spindle End (DIN) | 6353 |
| Spindle Taper (Size) | ZA 1000 |
| Max. Spindle Speed (rpm) | 400 |
| Engine Power at 40% (kW) | 849500 |
| Torque at 40% (Nm) | 400 |
| Z Axis No-load Speed (m/min) | 20 |
| X Axis No-load Speed (m/min) | 20 |
| Number of Sets (pcs) | 12 |
| Tool Diameter (DIN 69880) | 50 |
| Max. Tool Length (mm) | 180 |
| Machine Size (UxGxY) | 8.8x5.4x4.6 |
| Weight (kg) | 42000 |
| Option Y Axis | x |
