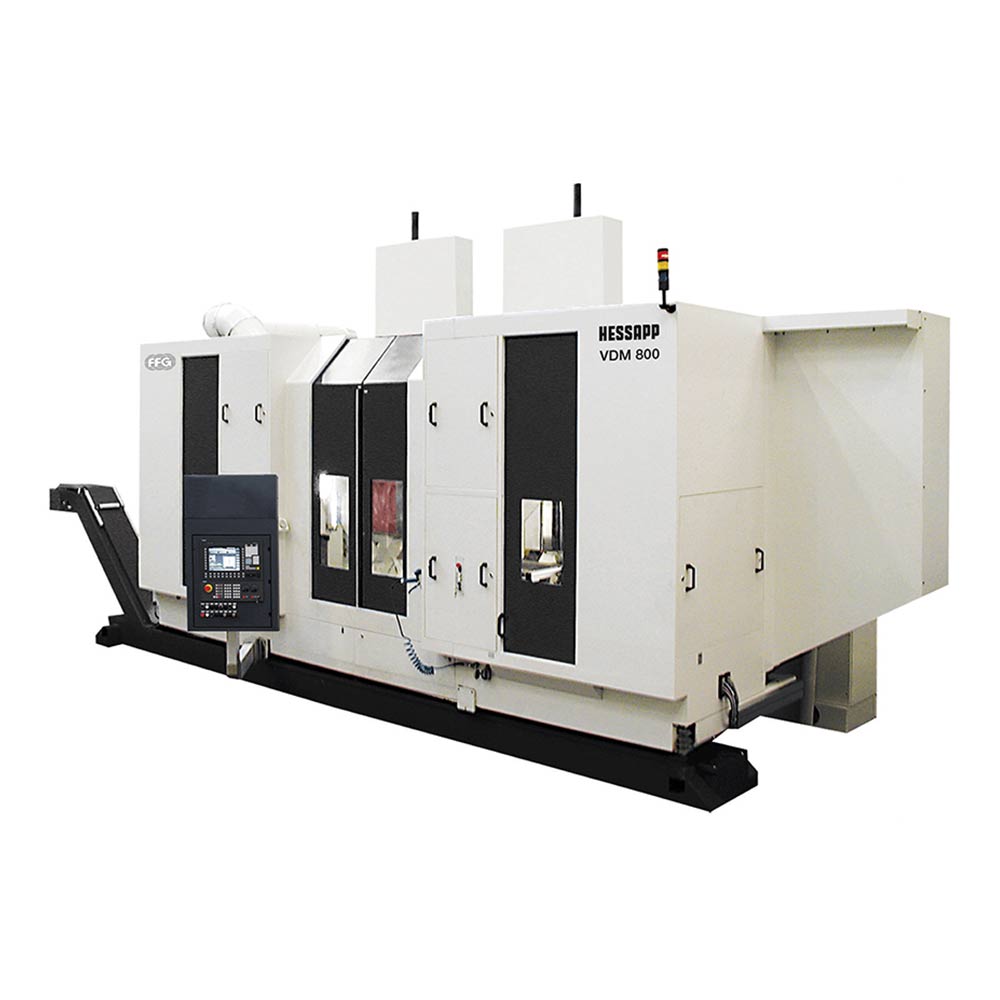

VDM-800
| Feature | Value |
| Max. Turning Diameter (mm) | 800 |
| Max. Dial Diameter (mm) | 900 |
| Part Height Including Mirror (mm) | 750 |
| Spindle Front Bearing Diameter (mm) | 240 |
| Spindle End (DIN) | 55026 |
| Spindle Taper (Size) | A15 |
| Max. Spindle Speed (rpm) | 55026 |
| Engine Power at 40% (kW) | 160 |
| Torque at 40% (Nm) | 6370 |
| Z Axis No-load Speed (m/min) | 20 |
| X Axis No-load Speed (m/min) | 25 |
| Number of Sets (pcs) | 8 |
| Tool Diameter (DIN 69880) | 60 |
| Max. Tool Length (mm) | 180 |
| Machine Size (UxGxY) | 5.0x3.5x4.1 |
| Weight (kg) | 32000 |
| Option Y Axis | x |
